1. web综合案例
1.1. 学习目标
目标1：完成用户与角色的绑定功能
目标2：完成登陆功能的快速开发
目标3：完成登陆用户菜单控制的功能
目标4：完成登陆用户权限校验的功能
1.2. 1. 用户与角色
1.2.1. 1.1 绑定用户与角色关系数据准备
（1）在用户模块下的\WEB-INF\pages\system\user\list.jsp页面中找到角色按钮，对应的点击事件和函数的绑定都已完成，roleList方法中向后台UserServelt发送请求，执行userRoleList方法，传递参数用户id
（2）找到UserServlet，添加方法
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String operation = request.getParameter("operation");
if("list".equals(operation)){
this.list(request,response);
}
//中间的省略
else if("userRoleList".equals(operation)){
this.userRoleList(request,response);
}
}
private void userRoleList(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String userId = request.getParameter("id");
User user = userService.findById(userId);
//将数据加载到指定区域，供页面获取
request.setAttribute("user,user);
//获取所有的角色列表
List<Role> all = roleService.findAllRoleByUserId(userId);
request.setAttribute("roleList",all);
//跳转页面
request.getRequestDispatcher("/WEB-INF/pages/system/user/role.jsp").forward(request,response);
}
同时从day03的课程资料中找到：模块页面\user\role.jsp，拷贝到工程/WEB-INF/pages/system/user/目录下
（3）在RoleService接口中添加查询方法，根据用户id查询角色列表
List<Role> findAllRoleByUserId(String userId);
（4）在对应的实现类中去实现该方法
@Override
public List<Role> findAllRoleByUserId(String userId) {
SqlSession sqlSession = null;
try{
//1.获取SqlSession
sqlSession = MapperFactory.getSqlSession();
//2.获取Dao
RoleDao roleDao = MapperFactory.getMapper(sqlSession,RoleDao.class);
//3.调用Dao层操作
return roleDao.findAllRoleByUserId(userId);
}catch (Exception e){
throw new RuntimeException(e);
//记录日志
}finally {
try {
TransactionUtil.close(sqlSession);
}catch (Exception e){
e.printStackTrace();
}
}
}
（5）在dao接口RoleDao中添加查询方法findAllRoleByUserId
List<Role> findAllRoleByUserId(String userId);
（6）在映射配置文件RoleDao.xml中添加对应的查询
<!--配置根据ID查询-->
<select id="findAllRoleByUserId" parameterType="java.lang.String" resultMap="BaseResultMap">
SELECT
role_id,
NAME,
CASE
WHEN role_id IN (SELECT role_id FROM ss_role_user WHERE user_id = #{'userId'})
THEN 'checked'
ELSE ''
END
AS remark
FROM
ss_role
</select>
（7）修改页面/WEB-INF/pages/system/user/role.jsp，添加checked
<form id="urform" action="${ctx}/system/user?operation=updateRole" method="post">
<input type="hidden" name="userId" value="${user.id}"/>
<div class="textbox" id="centerTextbox">
<div style="text-align:left">
<c:forEach items="${roleList}" var="role" varStatus="vs">
<span style="padding:3px;margin-right:30px;width: 160px;display: inline-block">
<input type="checkbox" name="roleIds" value="${role.id}" ${role.remark}/>${role.name}
</span>
</c:forEach>
</div>
</div>
</form>
（8）启动项目测试！
1.2.2. 1.2 绑定用户与角色关系
现在要真正去绑定用户与角色的关系，前台页面提交表单后会将用户的id和选择的角色的id传递到后台servlet
（1）在UserServlet中添加新的方法
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String operation = request.getParameter("operation");
if("list".equals(operation)){
this.list(request,response);
}
//中间的省略
else if("userRoleList".equals(operation)){
this.userRoleList(request,response);
}else if("updateRole".equals(operation)){
this.updateRole(request,response);
}
}
private void updateRole(HttpServletRequest request, HttpServletResponse response) throws IOException {
String userId = request.getParameter("userId");
String[] roleIds = request.getParameterValues("roleIds");
userService.updateRole(userId,roleIds);
//跳转回到页面list
response.sendRedirect(request.getContextPath()+"/system/user?operation=list");
}
（2）在UserService接口中添加一个新的方法updateRole
void updateRole(String userId, String[] roleIds);
（3）在对应的实现类中去实现
@Override
public void updateRole(String userId, String[] roleIds) {
SqlSession sqlSession = null;
try{
//1.获取SqlSession
sqlSession = MapperFactory.getSqlSession();
//2.获取Dao
UserDao userDao = MapperFactory.getMapper(sqlSession,UserDao.class);
userDao.deleteRole(userId);
for(String roleId : roleIds){
userDao.updateRole(userId,roleId);
}
//4.提交事务
TransactionUtil.commit(sqlSession);
}catch (Exception e){
TransactionUtil.rollback(sqlSession);
throw new RuntimeException(e);
//记录日志
}finally {
try {
TransactionUtil.close(sqlSession);
}catch (Exception e){
e.printStackTrace();
}
}
}
（4）在dao接口UserDao中添加两个方法
void deleteRole(String userId);
void updateRole(@Param("userId") String userId, @Param("roleId")String roleId);
（5）在该接口对应的映射配置文件中添加两个操作
<!--配置根据roleId删除关系表数据-->
<delete id="deleteRole" parameterType="java.lang.String">
delete from ss_role_user
where user_id = #{userId,jdbcType=VARCHAR}
</delete>
<!--配置全字段插入，当某个字段没有值时，插入null-->
<insert id="updateRole" parameterType="map">
insert into ss_role_user (role_id, user_id)
values (#{roleId,jdbcType=VARCHAR}, #{userId,jdbcType=VARCHAR})
</insert>
（6）启动项目进行测试！
1.3. 2. 登陆
1.3.1. 2.1 登陆功能快速开发
（1）找到项目webapp/login.jsp登陆页面，修改form表单提交的action路径
<form action="${pageContext.request.contextPath}/login?operation=login" method="post">
</form>
（2）在后台UserServlet添加登陆的方法
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String operation = request.getParameter("operation");
if("list".equals(operation)){
this.list(request,response);
}
//中间省略
else if("login".equals(operation)){
this.login(request,response);
}
}
private void login(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String email = request.getParameter("email");
String pwd = request.getParameter("password");
User user = userService.login(email,pwd);
if(user != null) {
request.getSession().setAttribute("loginUser", user);
//跳转页面
request.getRequestDispatcher("/WEB-INF/pages/home/main.jsp").forward(request, response);
}else{
response.sendRedirect(request.getContextPath()+"/login.jsp");
}
}
（3）在因为层接口UserService中添加登陆的方法
/**
* 根据邮箱和密码登录
* @param email
* @param pwd
* @return
*/
User login(String email, String pwd);
（4）在对应的实现类中去实现登陆方法
@Override
public User login(String email, String pwd) {
SqlSession sqlSession = null;
try{
//1.获取SqlSession
sqlSession = MapperFactory.getSqlSession();
//2.获取Dao
UserDao userDao = MapperFactory.getMapper(sqlSession,UserDao.class);
//3.调用Dao层操作
pwd = MD5Util.md5(pwd);
return userDao.findByEmailAndPwd(email,pwd);
}catch (Exception e){
throw new RuntimeException(e);
//记录日志
}finally {
try {
TransactionUtil.close(sqlSession);
}catch (Exception e){
e.printStackTrace();
}
}
}
（5）在UserDao接口中添加查询方法
User findByEmailAndPwd(@Param("email")String email, @Param("password")String pwd);
（6）在UserDao.xml中添加查询
<select id="findByEmailAndPwd" parameterType="map" resultMap="BaseResultMap">
select
<include refid="Base_Column_List"/>
from ss_user
where email = #{email,jdbcType=VARCHAR} and password = #{password,jdbcType=VARCHAR}
</select>
（7）将原本在webapp/pages/home下的所有页面统一挪到/WEB-INF/pages下，注意是连同home目录一起挪
（8）修改/WEB-INF/pages/home/main.jsp内容区的路径
<!-- 内容区域 -->
<div class="content-wrapper">
<iframe id="iframe" name="iframe"
style="overflow:visible;"
scrolling="auto"
frameborder="no" height="100%" width="100%"
src="${ctx}/system/user?operation=home"></iframe>
</div>
（9）在后台UserServlet中添加方法
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String operation = request.getParameter("operation");
if("list".equals(operation)){
this.list(request,response);
}
//中间省略
else if("home".equals(operation)){
this.home(request,response);
}
}
private void home(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.getRequestDispatcher("/WEB-INF/pages/home/home.jsp").forward(request, response);
}
（10）启动项目测试
1.3.2. 2.2 用户菜单控制数据准备
我们先来完成登陆后的注销操作，这是一套的
（1）找到/WEB-INF/pages/home/header.jsp中找到注销，添加请求连接
<div class="pull-right">
<a href="${ctx}/system/user?operation=logout" class="btn btn-default btn-flat">注销</a>
</div>
（2）在后台UserServlet中添加对应的方法logout
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String operation = request.getParameter("operation");
if("list".equals(operation)){
this.list(request,response);
}
//中间的省略
else if("login".equals(operation)){
this.login(request,response);
}else if("logout".equals(operation)){
this.logout(request,response);
}else if("home".equals(operation)){
this.home(request,response);
}
}
private void logout(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
request.getSession().removeAttribute("loginUser");
response.sendRedirect(request.getContextPath()+"/login.jsp");
}
（3）在用户登陆的时候需要去查询该用户对应的角色对应的所有模块，因此需要在后台的UserServlet中修改用户登陆的方法，添加数据的查询
private void login(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String email = request.getParameter("email");
String pwd = request.getParameter("password");
User user = userService.login(email,pwd);
if(user != null) {
request.getSession().setAttribute("loginUser", user);
//如果登录成功，加载该用户对应的角色对应的所有模块
List<Module> moduleList = userService.findModuleById(user.getId());
request.setAttribute("moduleList",moduleList);
//跳转页面
request.getRequestDispatcher("/WEB-INF/pages/home/main.jsp").forward(request, response);
}else{
response.sendRedirect(request.getContextPath()+"/login.jsp");
}
}
（4）在UserService接口中添加方法findModuleById
/**
* 根据用户id查询所有可以操作的菜单对象
* @param id 用户的id
* @return
*/
List<Module> findModuleById(String id);
（5）在实现类中去实现该方法
@Override
public List<Module> findModuleById(String id) {
SqlSession sqlSession = null;
try{
//1.获取SqlSession
sqlSession = MapperFactory.getSqlSession();
//2.获取Dao
ModuleDao moduleDao = MapperFactory.getMapper(sqlSession,ModuleDao.class);
//3.调用Dao层操作
return moduleDao.findModuleByUserId(id);
}catch (Exception e){
throw new RuntimeException(e);
//记录日志
}finally {
try {
TransactionUtil.close(sqlSession);
}catch (Exception e){
e.printStackTrace();
}
}
}
（6）在ModuleDao接口中添加查询方法findModuleByUserId
List<Module> findModuleByUserId(String id);
（7）在ModuleDao.xml中添加对应的查询
<select id="findModuleByUserId" parameterType="java.lang.String" resultMap="BaseResultMap">
/*userid->用户角色关系表->roleid->角色模块关系表->moduleid->module信息*/
SELECT DISTINCT
m.module_id, m.parent_id, m.name, m.ctype, m.state, m.curl, m.remark
FROM
ss_module AS m,
ss_role_module AS rm,
ss_role_user AS ru
WHERE
m.module_id = rm.module_id
AND rm.role_id = ru.role_id
AND ru.user_id = #{id,jdbcType=VARCHAR}
</select>
至此：用户的角色对应的模块数据已查询出来了，后续就是要在页面进行控制展示
1.3.3. 2.3 登陆用户菜单控制
（1）找到/WEB-INF/pages/home/aside.jsp页面，添加用户菜单的展示
<!-- sidebar menu: : style can be found in sidebar.less -->
<ul class="sidebar-menu">
<li class="header">菜单</li>
<c:forEach items="${moduleList}" var="item">
<c:if test="${item.ctype==0}">
<li class="treeview">
<a href="#">
<i class="fa fa-cube"></i> <span>${item.name}</span>
<span class="pull-right-container"><i class="fa fa-angle-left pull-right"></i></span>
</a>
<ul class="treeview-menu">
<c:forEach items="${moduleList}" var="item2">
<c:if test="${item2.ctype==1 && item2.parentId == item.id}">
<li id="${item2.id}">
<a onclick="setSidebarActive(this)" href="${ctx}/${item2.curl}" target="iframe">
<i class="fa fa-circle-o"></i>${item2.name}
</a>
</li>
</c:if>
</c:forEach>
</ul>
</li>
</c:if>
</c:forEach>
启动项目进行测试
1.4. 3.权限校验
1.4.1. 3.1 获取请求url
（1）创建过滤器：com.itheima.web.filters.AuthorFilter
@WebFilter(value = "/*")
public class AuthorFilter implements Filter {
private FilterConfig filterConfig;
/**
* 初始化方法，获取过滤器的配置对象
* @param filterConfig
* @throws ServletException
*/
@Override
public void init(FilterConfig filterConfig) throws ServletException {
this.filterConfig = filterConfig;
}
@Override
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws IOException, ServletException {
//1.定义和协议相关的请求和响应对象
HttpServletRequest request ;
HttpServletResponse response;
try{
//2.把参数转换成协议相关的对象
request = (HttpServletRequest)req;
response = (HttpServletResponse)resp;
//1.获取本次操作
String url = request.getRequestURI();
String queryString = request.getQueryString();
//1.当前获取到的url： /system/dept
url = url.substring(1);
//2.当前获取到的查询参数：operation=list operation=toEdit&id=100
int index = queryString.indexOf('&');
if(index != -1){
queryString = queryString.substring(0,index);
}
url = url + "?" + queryString;
//2.获取到当前登录人允许的操作
//3.比对本次操作是否在当前登录人允许的操作范围内
//3.1如果允许，放行
//3.2不允许跳转到非法访问页
//6.放行
chain.doFilter(request,response);
}catch (Exception e){
e.printStackTrace();
}
}
@Override
public void destroy() {
//可以做一些清理操作
}
}
1.4.2. 3.2 获取登陆用户可执行操作
（1）登陆成功后需要将用户的觉得对应的模块信息存放到session，找到UserServlet中的登陆方法login，
private void login(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
String email = request.getParameter("email");
String pwd = request.getParameter("password");
User user = userService.login(email,pwd);
if(user != null) {
request.getSession().setAttribute("loginUser", user);
//如果登录成功，加载该用户对应的角色对应的所有模块
List<Module> moduleList = userService.findModuleById(user.getId());
request.setAttribute("moduleList",moduleList);
//当前登录用户对应的可操作模块的所有url拼接成一个大的字符串
StringBuffer sbf = new StringBuffer();
for(Module m: moduleList){
sbf.append(m.getCurl());
sbf.append(',');
}
request.getSession().setAttribute("authorStr",sbf.toString());
//跳转页面
request.getRequestDispatcher("/WEB-INF/pages/home/main.jsp").forward(request, response);
}else{
response.sendRedirect(request.getContextPath()+"/login.jsp");
}
}
（2）修改AuthorFilter
@Override
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws IOException, ServletException {
//1.定义和协议相关的请求和响应对象
HttpServletRequest request ;
HttpServletResponse response;
HttpSession session;
try{
//2.把参数转换成协议相关的对象
request = (HttpServletRequest)req;
response = (HttpServletResponse)resp;
session = request.getSession();
//1.获取本次操作
String url = request.getRequestURI();
//.css .js .png .jpg .index
if(url.endsWith(".css")
|| url.endsWith(".js")
|| url.endsWith(".png")
|| url.endsWith(".jpg")
|| url.endsWith("index.jsp")
|| url.endsWith("login.jsp")){
chain.doFilter(request,response);
return;
}
String queryString = request.getQueryString();
if(queryString.endsWith("operation=login")){
chain.doFilter(request,response);
return;
}
//1.当前获取到的url： /system/dept
url = url.substring(1);
//2.当前获取到的查询参数：operation=list operation=toEdit&id=100
int index = queryString.indexOf('&');
if(index != -1){
queryString = queryString.substring(0,index);
}
url = url + "?" + queryString;
//2.获取到当前登录人允许的操作
String authorStr = session.getAttribute("authorStr").toString();
//3.比对本次操作是否在当前登录人允许的操作范围内
//3.1如果允许，放行
//3.2不允许跳转到非法访问页
//6.放行
chain.doFilter(request,response);
}catch (Exception e){
e.printStackTrace();
}
}

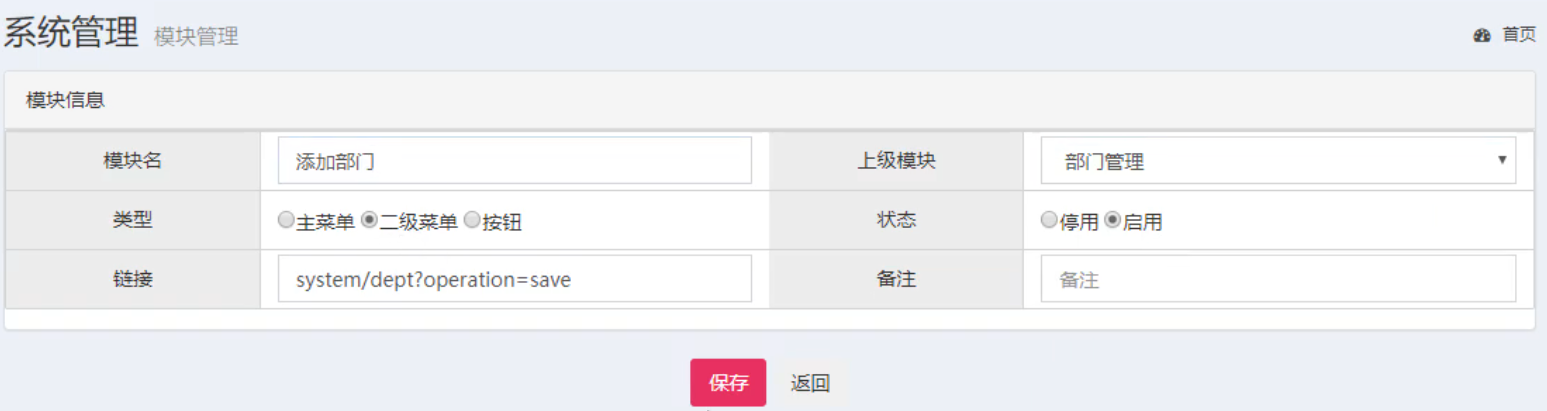

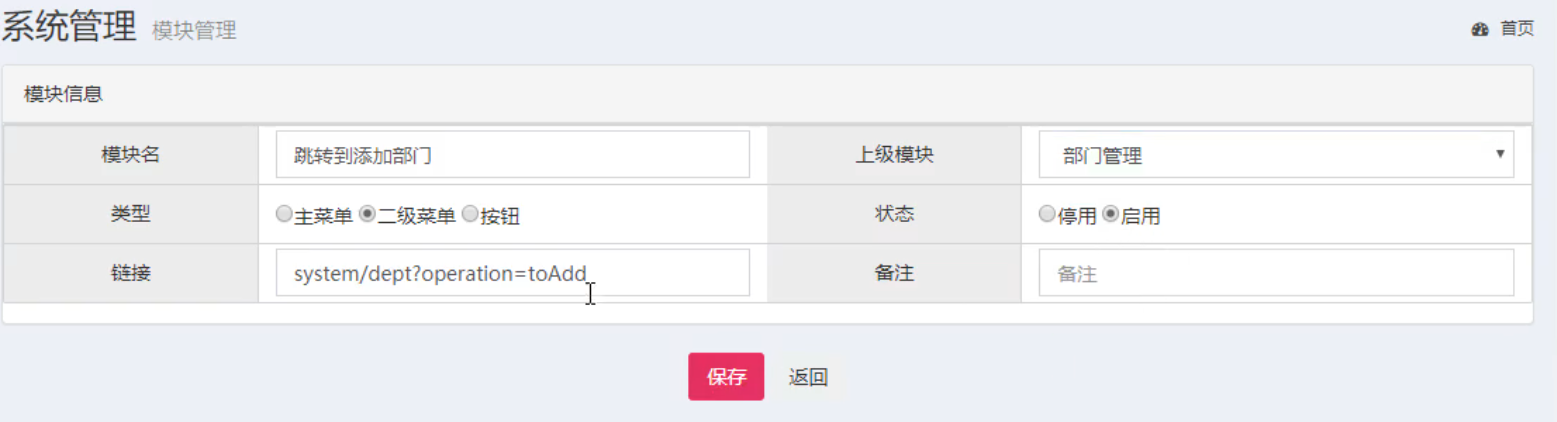

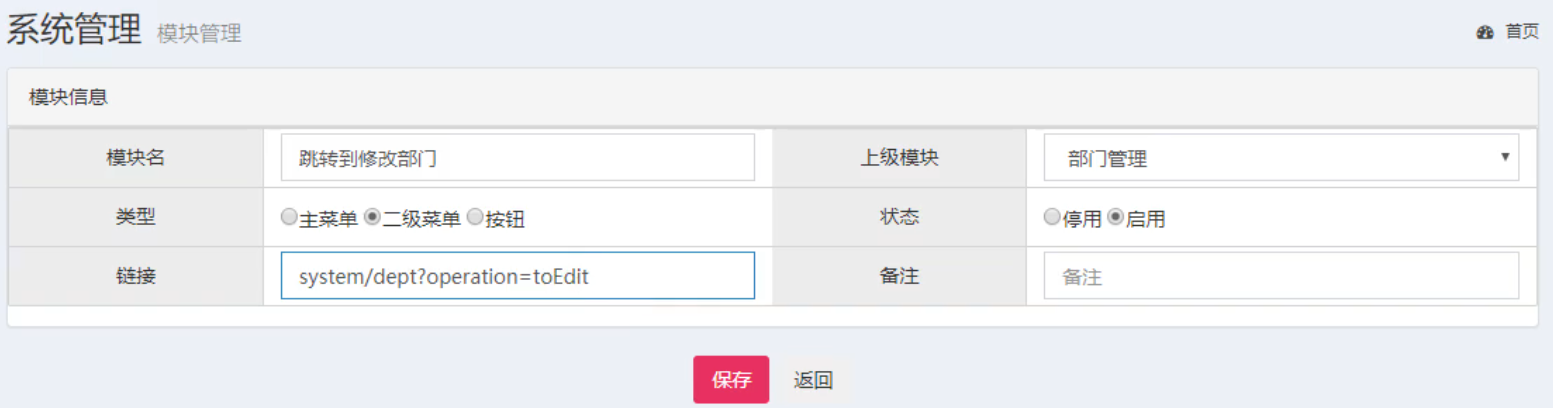

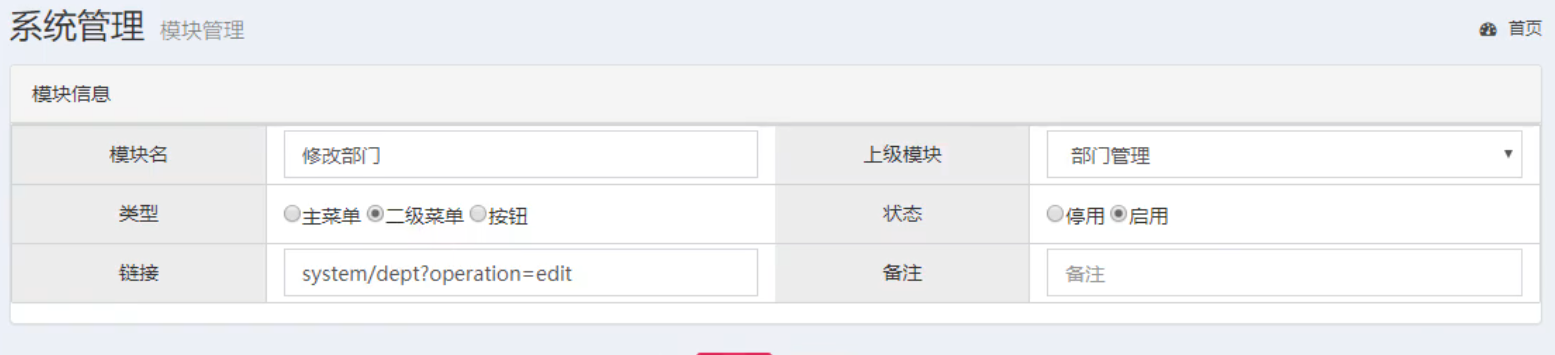

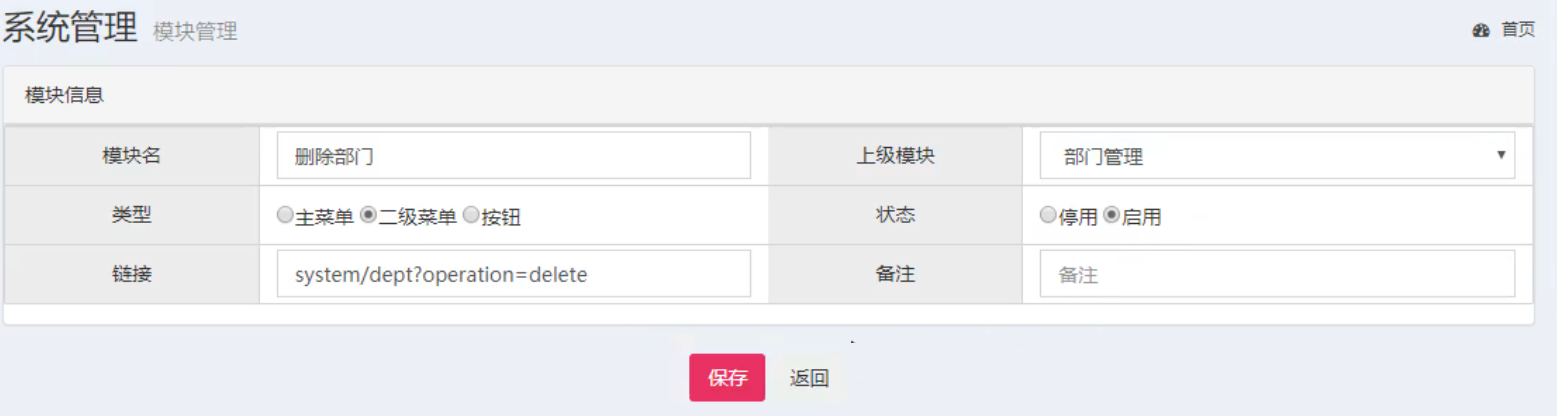

（3）启动项目在模块管理功能中去添加一些数据，如下所示
然后需要在角色管理中为对应的角色进行授权
1.4.3. 3.3 权限校验
开始授权
（1）从day03的课程资料中找到模块页面/unauthorized.jsp，拷贝到项目的webapp下即可
（2）更改AuthorFilter，
@Override
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws IOException, ServletException {
HttpServletRequest request ;
HttpServletResponse response;
HttpSession session;
try{
request = (HttpServletRequest)req;
response = (HttpServletResponse)resp;
session = request.getSession();
//1.获取本次操作
String url = request.getRequestURI();
//.css .js .png .jpg .index
if(url.endsWith(".css")
|| url.endsWith(".js")
|| url.endsWith(".png")
|| url.endsWith(".jpg")
|| url.endsWith("index.jsp")
|| url.endsWith("unauthorized.jsp")
|| url.endsWith("login.jsp")){
chain.doFilter(request,response);
return;
}
String queryString = request.getQueryString();
if(queryString.endsWith("operation=login")
||queryString.endsWith("operation=home")
||queryString.endsWith("operation=logout")){
chain.doFilter(request,response);
return;
}
//1.当前获取到的url： /system/dept
url = url.substring(1);
//2.当前获取到的查询参数：operation=list operation=toEdit&id=100
int index = queryString.indexOf('&');
if(index != -1){
queryString = queryString.substring(0,index);
}
url = url + "?" + queryString;
//2.获取到当前登录人允许的操作
String authorStr = session.getAttribute("authorStr").toString();
//3.比对本次操作是否在当前登录人允许的操作范围内
if(authorStr.contains(url)){
//3.1如果允许，放行
chain.doFilter(request,response);
return;
}else{
//3.2不允许跳转到非法访问页
response.sendRedirect(request.getContextPath()+"/unauthorized.jsp");
}
}catch (Exception e){
e.printStackTrace();
}
}
（3）对于页面上的元素，如果没有操作权限，我们直接让用户看不到即可，怎么操作呢？在页面上做一个判断，我们举一个例子，其他操作都是一样的
找到/WEB-INF/pages/system/user/list.jsp，
<div class="btn-group">
<c:if test="${sessionScope.authorStr.contains('system/user?operation=toAdd')}">
<button type="button" class="btn btn-default" title="新建" onclick='location.href="${ctx}/system/user?operation=toAdd"'><i class="fa fa-file-o"></i> 新建</button>
</c:if>
<button type="button" class="btn btn-default" title="删除" onclick='deleteById()'><i class="fa fa-trash-o"></i> 删除</button>
<button type="button" class="btn btn-default" title="刷新" onclick="window.location.reload();"><i class="fa fa-refresh"></i> 刷新</button>
<c:if test="${sessionScope.authorStr.contains('system/user?operation=userRoleList')}">
<button type="button" class="btn btn-default" title="角色" onclick="roleList()"><i class="fa fa-user-circle-o"></i> 角色</button>
</c:if>
</div>
（4）启动项目，测试
