1. web综合案例

1.1. 学习目标

目标1：能够说出数据库设计的三种常用范式

目标2：能够使用PD工具进行表结构设计

目标3：完成学科模块的业务开发

目标4：完成目录模块的业务开发

目标5：完成题目模块的业务开发

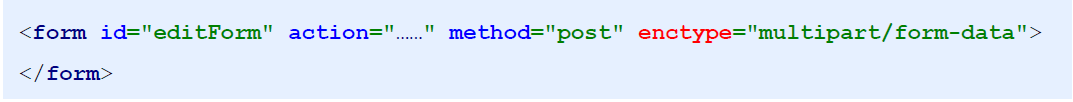

目标6：能够说出文件上传前台的三要素

目标7：能够完成题目选项模块的业务开发

1.2. 1. 数据库设计

1.2.1. 1.1 数据库设计范式

什么叫数据库设计范式？

范式：规范的形式，应用于各个行业的标准化

数据库设计中有5种范式，但是常用的分别是：第一范式（1NF）,第二范式（2NF），第三范式（3NF）

第一范式（1NF）：针对数据表中的列，列要具备原子性，不可再拆分

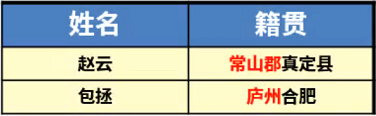

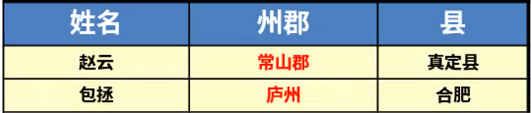

如果数据表这样设计，籍贯这一列不具备原子性，因为数据可再次拆分，不拆分的话无法获取用户的州郡信息或县市信息，拆分之后如下：

第二范式（2NF）：数据表要具备唯一主键，不存在多主键，使得每一行数据具有唯一性

在如图所示的表中：没有哪一个字段（列）能唯一确定一条数据，要想唯一确定一条数据，需要两个或更多的字段，这就违反了第二范式，数据表不具备唯一主键而存在多主键。

那如何来解决呢？在表中加一个唯一主键列：id

第三范式（3NF）：不依赖非主键的字段及更深层次的依赖，使得每个字段都独立依赖于主键字段（独立性）

什么叫依赖：依赖，就是在一个表中，其中某个字段的值B可以由另一个字段值A来决定，那我们称字段B依赖字段A或字段A决定字段B

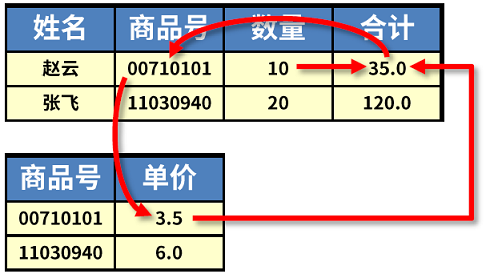

在如图所示的表结构中：合计列=单价 X 数量，当然这中间还需要依赖商品编号来查询商品单价

总而言之，合计这一列，依赖了表中的非主键字段，以及非主键字段的更深层次的依赖，这表明合计这一列的数据是冗余的，因为我们完全可以通过计算的方式得到合计数据，而不需要在表中来存储。

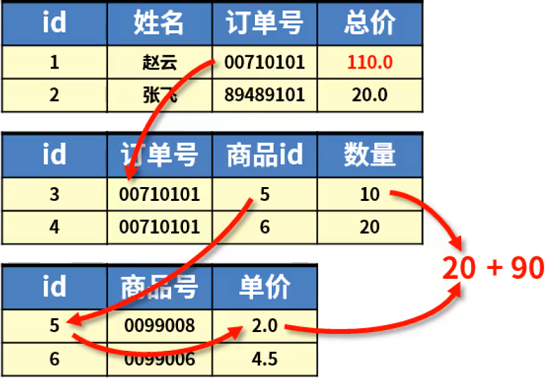

反三范式：允许少量的数据冗余，提高查询的速度

1.2.2. 1.2 数据库设计工具

PowerDesigner：简称PD，是一款功能强大的建模软件，提供强大的元数据管理功能，可以帮助用户构建关键信息的全方位视图，创建多种类型的模型，包括概念数据模型，物理数据模型，面向对象模型等等，同时集成了数据管理，BI，数据集成和数据整合多种功能。

1.3. 2. 学科模块快速开发

下面我们进行学科模块的快速开发：

（1）创建学科实体：com.itheima.domain.store.Course

public class Course {
    private String id;
    private String name;
    private String remark;
    private String state;
    private Date createTime;

    // getter/setter略
}

（2）创建dao接口：com.itheima.dao.store.CourseDao

public interface CourseDao {
    int save(Course course);

    int delete(Course course);

    int update(Course course);

    Course findById(String id);

    List<Course> findAll();
}

（3）从今日课程资料中找到dao层资源文件\CourseDao.xml，拷贝到项目src/main/resources/com/itheima/dao/store/下

当然这个地方可以将该目录下的所有映射配置文件都拷贝到该目录下，在做后续业务时就无需在拷贝了。

（4）创建业务层接口：com.itheima.service.store.CourseService

public interface CourseService {
    /**
     * 添加
     * @param course
     * @return
     */
    void save(Course course);

    /**
     * 删除
     * @param course
     * @return
     */
    void delete(Course course);

    /**
     * 修改
     * @param course
     * @return
     */
    void update(Course course);

    /**
     * 查询单个
     * @param id 查询的条件（id）
     * @return 查询的结果，单个对象
     */
    Course findById(String id);

    /**
     * 查询全部的数据
     * @return 全部数据的列表对象
     */
    List<Course> findAll();

    /**
     * 分页查询数据
     * @param page 页码
     * @param size 每页显示的数据总量
     * @return
     */
    PageInfo findAll(int page, int size);
}

（5）创建业务层实现类：com.itheima.service.store.impl.CourseServiceImpl

public class CourseServiceImpl implements CourseService {
    @Override
    public void save(Course course) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //id使用UUID的生成策略来获取
            String id = UUID.randomUUID().toString();
            course.setId(id);
            //3.调用Dao层操作
            courseDao.save(course);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public void delete(Course course) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //3.调用Dao层操作
            courseDao.delete(course);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public void update(Course course) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //3.调用Dao层操作
            courseDao.update(course);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public Course findById(String id) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //3.调用Dao层操作
            return courseDao.findById(id);
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public List<Course> findAll() {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //3.调用Dao层操作
            return courseDao.findAll();
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public PageInfo findAll(int page, int size) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
            //3.调用Dao层操作
            PageHelper.startPage(page,size);
            List<Course> all = courseDao.findAll();
            PageInfo pageInfo = new PageInfo(all);
            return pageInfo;
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }
}

（6）创建servlet：com.itheima.web.controller.store.CourseServlet

// uri:/store/course?operation=list
@WebServlet("/store/course")
public class CourseServlet extends BaseServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String operation = request.getParameter("operation");
        if("list".equals(operation)){
            this.list(request,response);
        }else if("toAdd".equals(operation)){
            this.toAdd(request,response);
        }else if("save".equals(operation)){
            this.save(request, response);
        }else if("toEdit".equals(operation)){
            this.toEdit(request,response);
        }else if("edit".equals(operation)){
            this.edit(request,response);
        }else if("delete".equals(operation)){
            this.delete(request,response);
        }
    }

    private void list(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //进入列表页
        //获取数据
        int page = 1;
        int size = 5;
        if(StringUtils.isNotBlank(request.getParameter("page"))){
            page = Integer.parseInt(request.getParameter("page"));
        }
        if(StringUtils.isNotBlank(request.getParameter("size"))){
            size = Integer.parseInt(request.getParameter("size"));
        }
        PageInfo all = courseService.findAll(page, size);
        //将数据保存到指定的位置
        request.setAttribute("page",all);
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/course/list.jsp").forward(request,response);
    }

    private void toAdd(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/course/add.jsp").forward(request,response);
    }

    private void save(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //将数据获取到，封装成一个对象
        Course course = BeanUtil.fillBean(request,Course.class,"yyyy-MM-dd");
        //调用业务层接口save
        courseService.save(course);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/course?operation=list");
    }

    private void toEdit(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        //查询要修改的数据findById
        String id = request.getParameter("id");
        Course course = courseService.findById(id);
        //将数据加载到指定区域，供页面获取
        request.setAttribute("course",course);
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/course/update.jsp").forward(request,response);
    }

    private void edit(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Course course = BeanUtil.fillBean(request,Course.class,"yyyy-MM-dd");
        //调用业务层接口save
        courseService.update(course);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/course?operation=list");
    }

    private void delete(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Course course = BeanUtil.fillBean(request,Course.class);
        //调用业务层接口save
        courseService.delete(course);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/course?operation=list");
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        this.doGet(request,response);
    }
}

（7）修改BaseServlet，添加CourseService

public class BaseServlet extends HttpServlet {
    protected CompanyService companyService;
    protected DeptService deptService;
    protected UserService userService;
    protected CourseService courseService;

    @Override
    public void init() throws ServletException {
        companyService = new CompanyServiceImpl();
        deptService = new DeptServiceImpl();
        userService = new UserServiceImpl();
        courseService = new CourseServiceImpl();
    }
}

（8）创建/WEB-INF/pages/store/course目录，然后从今日课程资料中找到模块页面\course下的所有页面，拷贝到刚刚创建的目录下

（9）修改业务层的保存方法，添加创建时间的保存

@Override
public void save(Course course) {
    SqlSession sqlSession = null;
    try{
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        CourseDao courseDao = MapperFactory.getMapper(sqlSession,CourseDao.class);
        //id使用UUID的生成策略来获取
        String id = UUID.randomUUID().toString();
        course.setId(id);

        //添加创建的时间
        course.setCreateTime(new Date());

        //3.调用Dao层操作
        courseDao.save(course);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
    }catch (Exception e){
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    }finally {
        try {
            TransactionUtil.close(sqlSession);
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

（10）在修改时，我们的创建时间是不允许修改的，因此我们在dao层进行update操作是去掉对创建时间的修改，找到CourseDao对应的持久层映射配置文件CourseDao.xml中的update，去掉创建时间即可

<!--配置全字段更新，当提供的数据为null时，数据库数据会被更新为null-->
<update id="update" parameterType="com.itheima.domain.store.Course">
    update st_course
    set name = #{name,jdbcType=VARCHAR},
    remark = #{remark,jdbcType=VARCHAR},
    state = #{state,jdbcType=VARCHAR}
    where id = #{id,jdbcType=VARCHAR}
</update>

（11）解决站点字符编码的问题，从今日课程资料中找到web层资源文件\CharacterEncodingFilter.java

然后创建一个包com.itheima.web.filters，然后把该文件拷贝到该包下

（12）启动项目进行测试

1.4. 3. 目录模块

（1）创建目录实体：com.itheima.domain.store.Catalog

public class Catalog {
    private String id;
    private String name;
    private String remark;
    private String state;
    private Date createTime;
    private String courseId;

    private Course course;

    // getter/setter略
}

（2）创建dao接口：com.itheima.dao.store.CatalogDao

public interface CatalogDao {
    int save(Catalog catalog);

    int delete(Catalog catalog);

    int update(Catalog catalog);

    Catalog findById(String id);

    List<Catalog> findAll();
}

（3）拷贝dao映射配置文件：前面已完成

（4）创建业务层接口：com.itheima.service.store.CatalogService

public interface CatalogService {
    /**
     * 添加
     * @param catalog
     * @return
     */
    void save(Catalog catalog);

    /**
     * 删除
     * @param catalog
     * @return
     */
    void delete(Catalog catalog);

    /**
     * 修改
     * @param catalog
     * @return
     */
    void update(Catalog catalog);

    /**
     * 查询单个
     * @param id 查询的条件（id）
     * @return 查询的结果，单个对象
     */
    Catalog findById(String id);

    /**
     * 查询全部的数据
     * @return 全部数据的列表对象
     */
    List<Catalog> findAll();

    /**
     * 分页查询数据
     * @param page 页码
     * @param size 每页显示的数据总量
     * @return
     */
    PageInfo findAll(int page, int size);
}

（5）创建业务层实现类：com.itheima.service.store.impl.CatalogServiceImpl

public class CatalogServiceImpl implements CatalogService {
    @Override
    public void save(Catalog catalog) {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //id使用UUID的生成策略来获取
            String id = UUID.randomUUID().toString();
            catalog.setId(id);

            //3.调用Dao层操作
            catalogDao.save(catalog);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        } catch (Exception e) {
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public void delete(Catalog catalog) {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //3.调用Dao层操作
            catalogDao.delete(catalog);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        } catch (Exception e) {
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public void update(Catalog catalog) {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //3.调用Dao层操作
            catalogDao.update(catalog);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        } catch (Exception e) {
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public Catalog findById(String id) {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //3.调用Dao层操作
            return catalogDao.findById(id);
        } catch (Exception e) {
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public List<Catalog> findAll() {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //3.调用Dao层操作
            return catalogDao.findAll();
        } catch (Exception e) {
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

    @Override
    public PageInfo findAll(int page, int size) {
        SqlSession sqlSession = null;
        try {
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
            //3.调用Dao层操作
            PageHelper.startPage(page, size);
            List<Catalog> all = catalogDao.findAll();
            PageInfo pageInfo = new PageInfo(all);
            return pageInfo;
        } catch (Exception e) {
            throw new RuntimeException(e);
            //记录日志
        } finally {
            try {
                TransactionUtil.close(sqlSession);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
}

（6）创建servlet：com.itheima.web.controller.store.CatalogServlet

// uri:/store/catalog?operation=list
@WebServlet("/store/catalog")
public class CatalogServlet extends BaseServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String operation = request.getParameter("operation");
        if("list".equals(operation)){
            this.list(request,response);
        }else if("toAdd".equals(operation)){
            this.toAdd(request,response);
        }else if("save".equals(operation)){
            this.save(request, response);
        }else if("toEdit".equals(operation)){
            this.toEdit(request,response);
        }else if("edit".equals(operation)){
            this.edit(request,response);
        }else if("delete".equals(operation)){
            this.delete(request,response);
        }
    }

    private void list(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //进入列表页
        //获取数据
        int page = 1;
        int size = 5;
        if(StringUtils.isNotBlank(request.getParameter("page"))){
            page = Integer.parseInt(request.getParameter("page"));
        }
        if(StringUtils.isNotBlank(request.getParameter("size"))){
            size = Integer.parseInt(request.getParameter("size"));
        }
        PageInfo all = catalogService.findAll(page, size);
        //将数据保存到指定的位置
        request.setAttribute("page",all);
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/catalog/list.jsp").forward(request,response);
    }

    private void toAdd(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/catalog/add.jsp").forward(request,response);
    }

    private void save(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //将数据获取到，封装成一个对象
        Catalog catalog = BeanUtil.fillBean(request,Catalog.class,"yyyy-MM-dd");
        //调用业务层接口save
        catalogService.save(catalog);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/catalog?operation=list");
    }

    private void toEdit(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        //查询要修改的数据findById
        String id = request.getParameter("id");
        Catalog catalog = catalogService.findById(id);
        //将数据加载到指定区域，供页面获取
        request.setAttribute("catalog",catalog);

        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/catalog/update.jsp").forward(request,response);
    }

    private void edit(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Catalog catalog = BeanUtil.fillBean(request,Catalog.class,"yyyy-MM-dd");
        //调用业务层接口save
        catalogService.update(catalog);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/catalog?operation=list");
    }

    private void delete(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Catalog catalog = BeanUtil.fillBean(request,Catalog.class);
        //调用业务层接口save
        catalogService.delete(catalog);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/catalog?operation=list");
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        this.doGet(request,response);
    }
}

（7）修改BaseServlet，添加CatalogService

public class BaseServlet extends HttpServlet {
    protected CompanyService companyService;
    protected DeptService deptService;
    protected UserService userService;
    protected CourseService courseService;
    protected CatalogService catalogService;

    @Override
    public void init() throws ServletException {
        companyService = new CompanyServiceImpl();
        deptService = new DeptServiceImpl();
        userService = new UserServiceImpl();
        courseService = new CourseServiceImpl();
        catalogService = new CatalogServiceImpl();
    }
}

（8）创建页面存放目录/WEB-INF/pages/store/catalog，然后从今日课程资料中找到模块页面\catalog下的所有页面到该目录

（9）修改servlet代码，找到toAdd方法，在去添加页面之前查询所有的学科数据

private void toAdd(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
    //加载学科信息
    List<Course> all = courseService.findAll();
    request.setAttribute("courseList",all);
    //跳转页面
    request.getRequestDispatcher("/WEB-INF/pages/store/catalog/add.jsp").forward(request,response);
}

（10）保存目录的时候要保存创建时间，修改业务层的save方法，添加对创建时间的保存

@Override
public void save(Catalog catalog) {
    SqlSession sqlSession = null;
    try {
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        CatalogDao catalogDao = MapperFactory.getMapper(sqlSession, CatalogDao.class);
        //id使用UUID的生成策略来获取
        String id = UUID.randomUUID().toString();
        catalog.setId(id);
        catalog.setCreateTime(new Date());
        //3.调用Dao层操作
        catalogDao.save(catalog);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
    } catch (Exception e) {
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    } finally {
        try {
            TransactionUtil.close(sqlSession);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

（11）修改servlet代码，找到toEdit方法，去到编辑页面之前查询所有的学科信息，

private void toEdit(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    //查询要修改的数据findById
    String id = request.getParameter("id");
    Catalog catalog = catalogService.findById(id);
    //将数据加载到指定区域，供页面获取
    request.setAttribute("catalog",catalog);

    //加载学科信息
    List<Course> all = courseService.findAll();
    request.setAttribute("courseList",all);

    //跳转页面
    request.getRequestDispatcher("/WEB-INF/pages/store/catalog/update.jsp").forward(request,response);
}

（12）启动项目，进行测试

1.5. 4. 题目模块

1.5.1. 4.1 题目模块快速开发

（1）创建题目实体：com.itheima.domain.store.Question

public class Question {
    private String id;            //题目ID

    private String companyId;    //所属企业
    private String catalogId;    //题目所属目录ID

    private String remark;        //题目简介

    private String subject;     //题干

    private String analysis;    //题目分析

    private String type;           //题目类型  1:单选，2：多选，3：简答
    private String difficulty;     //难易程度： 1极易 2容易 3普通  4困难  5极难

    private String isClassic;     //是否经典面试题 0：否 1：是
    private String state;       //题目状态  0：不可用  1：可用（只有审核通过的题目才可以设置）

    private String reviewStatus;//审核状态  -1 审核不通过  0 审核中   1 审核通过
    private Date createTime;

    private Company company;
    private Catalog catalog;

    // getter/setter 略
}

（2）创建dao接口：com.itheima.dao.store.QuestionDao

public interface QuestionDao {

    int save(Question question);

    int delete(Question question);

    int update(Question question);

    Question findById(String id);

    List<Question> findAll();
}

（3）添加题目dao的映射配置文件，之前已操作，略

（4）创建业务层接口：com.itheima.service.store.QuestionService

public interface QuestionService {
    /**
     * 添加
     * @param question
     * @return
     */
    void save(Question question);

    /**
     * 删除
     * @param question
     * @return
     */
    void delete(Question question);

    /**
     * 修改
     * @param question
     * @return
     */
    void update(Question question);

    /**
     * 查询单个
     * @param id 查询的条件（id）
     * @return 查询的结果，单个对象
     */
    Question findById(String id);

    /**
     * 查询全部的数据
     * @return 全部数据的列表对象
     */
    List<Question> findAll();

    /**
     * 分页查询数据
     * @param page 页码
     * @param size 每页显示的数据总量
     * @return
     */
    PageInfo findAll(int page, int size);
}

（5）创建业务层实现类：com.itheima.service.store.impl.QuestionServiceImpl

public class QuestionServiceImpl implements QuestionService {
    @Override
    public void save(Question question) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //id使用UUID的生成策略来获取
            String id = UUID.randomUUID().toString();
            question.setId(id);

            //3.调用Dao层操作
            questionDao.save(question);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public void delete(Question question) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //3.调用Dao层操作
            questionDao.delete(question);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public void update(Question question) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //3.调用Dao层操作
            questionDao.update(question);
            //4.提交事务
            TransactionUtil.commit(sqlSession);
        }catch (Exception e){
            TransactionUtil.rollback(sqlSession);
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public Question findById(String id) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //3.调用Dao层操作
            return questionDao.findById(id);
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public List<Question> findAll() {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //3.调用Dao层操作
            return questionDao.findAll();
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }

    @Override
    public PageInfo findAll(int page, int size) {
        SqlSession sqlSession = null;
        try{
            //1.获取SqlSession
            sqlSession = MapperFactory.getSqlSession();
            //2.获取Dao
            QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
            //3.调用Dao层操作
            PageHelper.startPage(page,size);
            List<Question> all = questionDao.findAll();
            PageInfo pageInfo = new PageInfo(all);
            return pageInfo;
        }catch (Exception e){
            throw new RuntimeException(e);
            //记录日志
        }finally {
            try {
                TransactionUtil.close(sqlSession);
            }catch (Exception e){
                e.printStackTrace();
            }
        }
    }
}

（6）创建servlet：com.itheima.web.controller.store.QuestionServlet

// uri:/store/question?operation=list
@WebServlet("/store/question")
public class QuestionServlet extends BaseServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String operation = request.getParameter("operation");
        if("list".equals(operation)){
            this.list(request,response);
        }else if("toAdd".equals(operation)){
            this.toAdd(request,response);
        }else if("save".equals(operation)){
            this.save(request, response);
        }else if("toEdit".equals(operation)){
            this.toEdit(request,response);
        }else if("edit".equals(operation)){
            this.edit(request,response);
        }else if("delete".equals(operation)){
            this.delete(request,response);
        }
    }

    private void list(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //进入列表页
        //获取数据
        int page = 1;
        int size = 5;
        if(StringUtils.isNotBlank(request.getParameter("page"))){
            page = Integer.parseInt(request.getParameter("page"));
        }
        if(StringUtils.isNotBlank(request.getParameter("size"))){
            size = Integer.parseInt(request.getParameter("size"));
        }
        PageInfo all = questionService.findAll(page, size);
        //将数据保存到指定的位置
        request.setAttribute("page",all);
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/question/list.jsp").forward(request,response);
    }

    private void toAdd(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/question/add.jsp").forward(request,response);
    }

    private void save(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(request,Question.class,"yyyy-MM-dd");
        //调用业务层接口save
        questionService.save(question);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
    }

    private void toEdit(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        //查询要修改的数据findById
        String id = request.getParameter("id");
        Question question = questionService.findById(id);
        //将数据加载到指定区域，供页面获取
        request.setAttribute("question",question);
        //跳转页面
        request.getRequestDispatcher("/WEB-INF/pages/store/question/update.jsp").forward(request,response);
    }

    private void edit(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(request,Question.class,"yyyy-MM-dd");
        //调用业务层接口save
        questionService.update(question);
        //跳转回到页面list
        //list(request,response);
        response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
    }

    private void delete(HttpServletRequest request, HttpServletResponse response) throws IOException {
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(request,Question.class);
        //调用业务层接口save
        questionService.delete(question);
        //跳转回到页面list
        response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        this.doGet(request,response);
    }
}

（7）修改BaserServlet，添加QuestionService

public class BaseServlet extends HttpServlet {
    protected CompanyService companyService;
    protected DeptService deptService;
    protected UserService userService;
    protected CourseService courseService;
    protected CatalogService catalogService;
    protected QuestionService questionService;

    @Override
    public void init() throws ServletException {
        companyService = new CompanyServiceImpl();
        deptService = new DeptServiceImpl();
        userService = new UserServiceImpl();
        courseService = new CourseServiceImpl();
        catalogService = new CatalogServiceImpl();
        questionService = new QuestionServiceImpl();
    }
}

（8）创建页面存放目录,/WEB-INF/pages/store/question，从今日课程资料中找到模块页面\question，将下面的所有页面拷贝到该目录下

（9）修改servlet，找到toAdd方法，去添加页面之前查询企业和目录数据

private void toAdd(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
    List<Company> companyList = companyService.findAll();
    List<Catalog> catalogList = catalogService.findAll();
    request.setAttribute("companyList",companyList);
    request.setAttribute("catalogList",catalogList);

    //跳转页面
    request.getRequestDispatcher("/WEB-INF/pages/store/question/add.jsp").forward(request,response);
}

找到toEdit方法，去修改页面之前查询企业和目录数据

private void toEdit(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    //查询要修改的数据findById
    String id = request.getParameter("id");
    Question question = questionService.findById(id);
    //将数据加载到指定区域，供页面获取
    request.setAttribute("question",question);

    List<Company> companyList = companyService.findAll();
    List<Catalog> catalogList = catalogService.findAll();
    request.setAttribute("companyList",companyList);
    request.setAttribute("catalogList",catalogList);

    //跳转页面
    request.getRequestDispatcher("/WEB-INF/pages/store/question/update.jsp").forward(request,response);
}

（10）修改业务层代码，找到添加数据的方法，需要新增审核状态和创建时间的数据

@Override
public void save(Question question) {
    SqlSession sqlSession = null;
    try{
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
        //id使用UUID的生成策略来获取
        String id = UUID.randomUUID().toString();
        question.setId(id);

        //设置新创建的题目默认的审核状态为未审核（0）
        question.setReviewStatus("0");
        question.setCreateTime(new Date());

        //3.调用Dao层操作
        questionDao.save(question);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
    }catch (Exception e){
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    }finally {
        try {
            TransactionUtil.close(sqlSession);
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

（11）修改查询所有数据时的排序，修改对应的dao映射配置文件QuestionDao.xml

<!--配置查询所有，带条件-->
<select id="findAll" resultMap="BaseResultMap">
    select
    <include refid="Base_Column_List"/>
    from st_question
    order by create_time desc
</select>

（12）在进行数据修改时，有些数据是不能修改的，我们可以在持久层映射配置文件中进行控制

<!--配置全字段更新，当提供的数据为null时，数据库数据会被更新为null-->
<update id="update" parameterType="com.itheima.domain.store.Question">
    update
    st_question
    set
    company_id = #{companyId,jdbcType=VARCHAR},
    catalog_id = #{catalogId,jdbcType=VARCHAR},
    remark = #{remark,jdbcType=VARCHAR},
    subject = #{subject,jdbcType=VARCHAR},
    analysis = #{analysis,jdbcType=VARCHAR},
    difficulty = #{difficulty,jdbcType=VARCHAR},
    is_classic = #{isClassic,jdbcType=VARCHAR},
    state = #{state,jdbcType=VARCHAR}
    where
    id = #{id,jdbcType=VARCHAR}
</update>

1.5.2. 4.2 文件上传基础演示

文件上传功能需要前台功能和后台功能共同配合完成

前台：文件上传的三要素

• 页面提供文件上传的表单元素

• form表单enctype属性的值为multipart/form-data

• 表单的提交方式必须是POST，get方式无法提交大量的数据

后台：可以使用的技术有很多，在此处我们使用apache提供的commons-fileupload组件完成文件上次操作，后台的操作步骤如下

• 确认请求操作是否支持文件上传
• 创建磁盘工厂对象，用于将页面上传的文件保存到磁盘中
• 获取servet文件上传核心对象
• 读取数据
• 对读取到数据中的文件表单进行操作，并将内容写到指定位置

下面我们开始进行文件上传的演示：

（1）从今日课程资料找到文件下载\testFileUpload.jsp文件上传页面，将其添加到项目/WEB-INF/pages/store/question目录下

（2）在question目录下的list.jsp页面上添加一个新的按钮，点击该按钮跳转到文件上传页面

<button type="button" class="btn btn-default" title="测试文件上传" onclick='location.href="${ctx}/store/question?operation=toTestUpload"'><i class="fa fa-file-o"></i> 测试文件上传</button>

（3）在QuestionServlet中添加toTestUpload方法，跳转到文件上传页面

@WebServlet("/store/question")
public class QuestionServlet extends BaseServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String operation = request.getParameter("operation");
        if("list".equals(operation)){
            this.list(request,response);
        }else if("toAdd".equals(operation)){
            this.toAdd(request,response);
        }else if("save".equals(operation)){
            this.save(request, response);
        }else if("toEdit".equals(operation)){
            this.toEdit(request,response);
        }else if("edit".equals(operation)){
            this.edit(request,response);
        }else if("delete".equals(operation)){
            this.delete(request,response);
        }else if("toTestUpload".equals(operation)){
            this.toTestUpload(request,response);
        }else if("testUpload".equals(operation)){
            try {
                this.testUpload(request,response);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
    private void toTestUpload(HttpServletRequest request,HttpServletResponse response) throws ServletException, IOException {
        request.getRequestDispatcher("/WEB-INF/pages/store/question/testFileUpload.jsp").forward(request,response);
    }

    private void testUpload(HttpServletRequest request,HttpServletResponse response) throws Exception {

    }
}

（4）完成文件上传的后台代码

private void testUpload(HttpServletRequest request,HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);

        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),item.getName()));
            }
        }
    }
}

需要在项目webapp目录下创建一个upload目录用于存储上传过来的文件

（5）启动测试

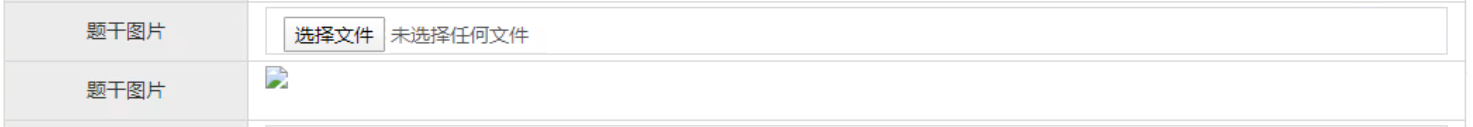

1.5.3. 4.3 添加题目时加入文件上传

（1）在题目实体中添加图片的属性

public class Question {
    // 其他属性略
    private String picture;

    public String getPicture() {
        return picture;
    }
    public void setPicture(String picture) {
        this.picture = picture;
    }
}

（2）在对应的dao映射配置文件中添加图片字段的配置，在resultMap，查询的sql片段，保存，更新几个位置添加映射配置即可，更新的时候是不需要更改图片的名称，因此是去掉对图片名称的更新

<!--配置实体类属性和数据库表中列的对应关系-->
<resultMap id="BaseResultMap" type="com.itheima.domain.store.Question">
    <id column="id" jdbcType="VARCHAR" property="id"/>
    <result column="company_id" jdbcType="VARCHAR" property="companyId"/>
    <result column="catalog_id" jdbcType="VARCHAR" property="catalogId"/>
    <result column="remark" jdbcType="VARCHAR" property="remark"/>
    <result column="subject" jdbcType="VARCHAR" property="subject"/>
    <result column="analysis" jdbcType="VARCHAR" property="analysis"/>
    <result column="type" jdbcType="VARCHAR" property="type"/>
    <result column="difficulty" jdbcType="VARCHAR" property="difficulty"/>
    <result column="is_classic" jdbcType="VARCHAR" property="isClassic"/>
    <result column="state" jdbcType="VARCHAR" property="state"/>
    <result column="review_status" jdbcType="VARCHAR" property="reviewStatus"/>
    <result column="create_time" jdbcType="TIMESTAMP" property="createTime"/>
    <result column="picture" jdbcType="VARCHAR" property="picture"/>
    <association
                 property="company"
                 column="company_id"
                 javaType="com.itheima.domain.store.Course"
                 select="com.itheima.dao.store.CompanyDao.findById"/>
    <association
                 property="catalog"
                 column="catalog_id"
                 javaType="com.itheima.domain.store.Course"
                 select="com.itheima.dao.store.CatalogDao.findById"
                 />
</resultMap>
<!--配置查询的列名公共SQL语句-->
<sql id="Base_Column_List">
    id, catalog_id, company_id, remark,subject,analysis,type, difficulty, is_classic,
    state, review_status, create_time, picture
</sql>
<!--配置全字段插入，当某个字段没有值时，插入null-->
<insert id="save" parameterType="com.itheima.domain.store.Question">
    insert into st_question(id, company_id, catalog_id, remark, subject, analysis, type,
    difficulty, is_classic, state, review_status, create_time ,picture )
    values (#{id,jdbcType=VARCHAR}, #{companyId,jdbcType=VARCHAR}, #{catalogId,jdbcType=VARCHAR},
    #{remark,jdbcType=VARCHAR}, #{subject,jdbcType=VARCHAR}, #{analysis,jdbcType=VARCHAR},
    #{type,jdbcType=VARCHAR}, #{difficulty,jdbcType=VARCHAR}, #{isClassic,jdbcType=VARCHAR},
    #{state,jdbcType=VARCHAR}, #{reviewStatus,jdbcType=VARCHAR}, #{createTime,jdbcType=TIMESTAMP},
    #{picture,jdbcType=VARCHAR} )
</insert>
<!--配置全字段更新，当提供的数据为null时，数据库数据会被更新为null-->
<update id="update" parameterType="com.itheima.domain.store.Question">
    update
    st_question
    set
    company_id = #{companyId,jdbcType=VARCHAR},
    catalog_id = #{catalogId,jdbcType=VARCHAR},
    remark = #{remark,jdbcType=VARCHAR},
    subject = #{subject,jdbcType=VARCHAR},
    analysis = #{analysis,jdbcType=VARCHAR},
    difficulty = #{difficulty,jdbcType=VARCHAR},
    is_classic = #{isClassic,jdbcType=VARCHAR},
    state = #{state,jdbcType=VARCHAR}
    where
    id = #{id,jdbcType=VARCHAR}
</update>

（3）在question模块的添加页面add.jsp中加入图片上传的表单项

<form id="editForm" action="${ctx}/store/question?operation=save" method="post" enctype="multipart/form-data">
    <!--其他元素略-->

    <div class="col-md-2 title">题干图片</div><!--放到题干后面-->
    <div class="col-md-10 data ">
        <input type="file" class="form-control" placeholder="题干图片" name="picture">
    </div>

</form>

（4）在servlet中修改保存题目的方法save，首先要更改的就是接收数据的方式，我们要按照文件上传的形式来接收

@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    String operation = request.getParameter("operation");
    if("list".equals(operation)){
        this.list(request,response);
    }else if("toAdd".equals(operation)){
        this.toAdd(request,response);
    }else if("save".equals(operation)){
        try {
            this.save(request, response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }else if("toEdit".equals(operation)){
        this.toEdit(request,response);
    }else if("edit".equals(operation)){
        this.edit(request,response);
    }else if("delete".equals(operation)){
        this.delete(request,response);
    }else if("toTestUpload".equals(operation)){
        this.toTestUpload(request,response);
    }else if("testUpload".equals(operation)){
        try {
            this.testUpload(request,response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

private void save(HttpServletRequest request,HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);
        // --处理form表单提交过来的普通数据
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(fileItems,Question.class);
        //调用业务层接口save
        questionService.save(question);

        // --处理form表单提交过来的文件数据
        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),item.getName()));
            }
        }
    }
    //跳转回到页面list
    response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
}

1.5.4. 4.4 文件上传的重名问题

（1）在question模块的list.jsp页面中添加对图片名称的展示

<!--数据列表-->
<table id="dataList" class="table table-bordered table-striped table-hover dataTable">
    <thead>
        <tr>
            <th class="" style="padding-right:0px;">
                <input type="checkbox" name="selid" onclick="checkAll('id',this)">
            </th>
            <th class="sorting">图片</th>
            <th class="sorting">企业</th>
            <th class="sorting">类别</th>
            <th class="sorting">题目</th>
            <th class="sorting">类型</th>
            <th class="sorting">难度</th>
            <th class="sorting">经典面试题</th>
            <th class="sorting">状态</th>
            <th class="sorting">审核结果</th>
            <th class="text-center">操作</th>
        </tr>
    </thead>
    <tbody>
        <c:forEach items="${page.list}" var="o" varStatus="status">
            <tr class="odd" onmouseover="this.className='highlight'" onmouseout="this.className='odd'" >
                <td><input type="checkbox" name="id" value="${o.id}"/></td>
                <td>${o.picture}</td>
                <td>${o.company.name}</td>
                <td>${o.catalog.name}</td>
                <td>${o.subject}</td>
                <td>
                    <c:choose>
                        <c:when test="${o.type eq '1'}">单选</c:when>
                        <c:when test="${o.type eq '2'}">多选</c:when>
                        <c:when test="${o.type eq '3'}">简答</c:when>
                    </c:choose>
                </td>
                <td>
                    <c:forEach begin="1" end="${o.difficulty}">
                        ★
                    </c:forEach>
                </td>
                <td>${o.isClassic eq "1" ? "经典题":"普通题"}</td>
                <td>${o.state eq "1" ? "<font color='green'>启用</font>" : "<font color='red'>禁用</font>"}</td>
                <td>
                    <c:choose>
                        <c:when test="${o.reviewStatus eq '1'}"><font color="green">审核通过</font></c:when>
                        <c:when test="${o.reviewStatus eq '0'}">审核中</c:when>
                        <c:when test="${o.reviewStatus eq '-1'}"><font color="red">审核不通过</font></c:when>
                    </c:choose>
                </td>
                <th class="text-center">
                    <button type="button" class="btn bg-olive btn-xs" onclick='location.href="${ctx}/store/question?operation=toEdit&id=${o.id}"'>编辑</button>
                    <button type="button" class="btn bg-olive btn-xs" onclick='location.href="${ctx}/store/question?operation=toExamine&id=${o.id}"'>审核</button>
                </th>
            </tr>
        </c:forEach>
    </tbody>
</table>

文件上传的常见问题：文件重名问题

（1）修改业务层接口QuestionService的保存方法，添加返回值，将图片的名称返回

/**
     * 添加
     * @param question
     * @return 保存的图片名称
     */
String save(Question question);

（2）修改实现类，添加对图片名称的存储及返回图片的名称，图片名称使用该条数据的id

@Override
public String save(Question question) {
    SqlSession sqlSession = null;
    try{
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
        //id使用UUID的生成策略来获取
        String id = UUID.randomUUID().toString();
        question.setId(id);

        //设置新创建的题目默认的审核状态为未审核（0）
        question.setReviewStatus("0");
        question.setCreateTime(new Date());
        //设置当前存储的图片名称为id值
        question.setPicture(id);

        //3.调用Dao层操作
        questionDao.save(question);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
        return id;
    }catch (Exception e){
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    }finally {
        try {
            TransactionUtil.close(sqlSession);
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

（3）在servlet中的save方法中接收图片名称

private void save(HttpServletRequest request,HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);
        // --处理form表单提交过来的普通数据
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(fileItems,Question.class);
        //调用业务层接口save
        String picture = questionService.save(question);

        // --处理form表单提交过来的文件数据
        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),picture));
            }
        }
    }
    //跳转回到页面list
    response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
}

1.5.5. 4.5 修改题目时加入文件上传

修改之前需要先将图片展示出来

（1）在question模块的update.jsp页面中添加图片的展示，同时把修改时上传图片的表单项添加进去，以及表单也要配套修改

<form id="editForm" action="${ctx}/store/question?operation=edit" method="post" enctype="multipart/form-data">
        <!--其他省略-->

            <div class="col-md-2 title">题干图片</div>
            <div class="col-md-10 data ">
                <input type="file" class="form-control" placeholder="题干图片" name="picture" value="${question.picture}">
            </div>

            <div class="col-md-2 title">题干图片</div>
            <div class="col-md-10 data ">
                <2img src="${ctx}/upload/${question.picture}"/>
            </div>


</form>

（2）修改后台的servlet，找到edit方法进行修改

@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
    String operation = request.getParameter("operation");
    if("list".equals(operation)){
        this.list(request,response);
    }else if("toAdd".equals(operation)){
        this.toAdd(request,response);
    }else if("save".equals(operation)){
        try {
            this.save(request, response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }else if("toEdit".equals(operation)){
        this.toEdit(request,response);
    }else if("edit".equals(operation)){
        try {
            this.edit(request,response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }else if("delete".equals(operation)){
        this.delete(request,response);
    }else if("toTestUpload".equals(operation)){
        this.toTestUpload(request,response);
    }else if("testUpload".equals(operation)){
        try {
            this.testUpload(request,response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}
private void edit(HttpServletRequest request, HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);
        // --处理form表单提交过来的普通数据
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(fileItems,Question.class);
        //调用业务层接口save
        questionService.update(question);

        // --处理form表单提交过来的文件数据
        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),question.getId()));
            }
        }
    }
    //跳转回到页面list
    response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
}

（3）业务层实现类的update方法在进行数据修改时，图片名称不需要修改，这个我们在持久层的update操作时去掉对图片的更改，我们改一下对应的映射配置文件（这步操作之前已完成）如下

<!--配置全字段更新，当提供的数据为null时，数据库数据会被更新为null-->
<update id="update" parameterType="com.itheima.domain.store.Question">
    update
    st_question
    set
    company_id = #{companyId,jdbcType=VARCHAR},
    catalog_id = #{catalogId,jdbcType=VARCHAR},
    remark = #{remark,jdbcType=VARCHAR},
    subject = #{subject,jdbcType=VARCHAR},
    analysis = #{analysis,jdbcType=VARCHAR},
    difficulty = #{difficulty,jdbcType=VARCHAR},
    is_classic = #{isClassic,jdbcType=VARCHAR},
    state = #{state,jdbcType=VARCHAR}
    where
    id = #{id,jdbcType=VARCHAR}
</update>

1.5.6. 4.6 兼容图片上传可选操作与显示问题

问题：

如果在新增的时候没有选择上传图片，会导致在修改的时候页面上展示不出图片，如下图所示

产生问题的原因：

新增的时候虽然没有上传图片，但是由于我们保存数据的时候默认是将数据的id作为图片的名称，所以在展示的时候会去找这个名称的图片，但是我们又没上传因此会找到不到

改进方法：

在新增时做一个判断，如果上传了图片再去保存图片的名称，没有上传则不保存图片的名称

（1）在servlet的add方法中去判断当前是否上传文件，可以用一个布尔值标记来表明是否有文件上传，同时在业务层执行保存操作时可以把这个是否有图片的标记传递过去

private void save(HttpServletRequest request,HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);

        //创建一个标记位,标记当前时候有上传文件的操作
        boolean flag = false;
        for(FileItem item :fileItems){
            if(StringUtils.isNotBlank(item.getName())){
                flag = true;
                break;
            }
        }

        // --处理form表单提交过来的普通数据
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(fileItems,Question.class);
        //调用业务层接口save
        String picture = questionService.save(question , flag);

        // --处理form表单提交过来的文件数据
        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),picture));
            }
        }
    }
    //跳转回到页面list
    response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
}

（2）修改业务层接口方法save，添加参数

/**
     * 添加
     * @param question
     * @param flag 是否有上传文件的操作
     * @return 保存的图片名称
     */
String save(Question question,boolean flag);

（3）修改对应的接口实现类：

@Override
public String save(Question question,boolean flag) {
    SqlSession sqlSession = null;
    try{
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);
        //id使用UUID的生成策略来获取
        String id = UUID.randomUUID().toString();
        question.setId(id);
        //设置新创建的题目默认的审核状态为未审核（0）
        question.setReviewStatus("0");
        question.setCreateTime(new Date());
        //检测到前端上传文件了，记录文件名，否则不记录
        if(flag) {
            //设置当前存储的图片名称为id值
            question.setPicture(id);
        }
        //3.调用Dao层操作
        questionDao.save(question);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
        return id;
    }catch (Exception e){
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    }finally {
        try {
            TransactionUtil.close(sqlSession);
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}

（4）在修改时，如果没有图片则不显示图片，有图片信息的时候再显示，我们可以使用<c:if>进行判断

<div class="col-md-2 title">题干图片</div>
<div class="col-md-10 data ">
    <input type="file" class="form-control" placeholder="题干图片" name="picture" value="${question.picture}">
</div>

<c:if test="${question.picture.length() > 0}">
    <div class="col-md-2 title">题干图片</div>
    <div class="col-md-10 data ">
        <2img src="${ctx}/upload/${question.picture}"/>
    </div>
</c:if>

（5）页面修改完成后，在进行真正的修改操作时，我们同样需要进行判断，如果上传了图片则进行修改，否则不进行修改。

找到后台的servlet的edit方法，做出如下修改

private void edit(HttpServletRequest request, HttpServletResponse response) throws Exception {
    //1.确认该操作是否支持文件上传操作，enctype="multipart/form-data"
    if(ServletFileUpload.isMultipartContent(request)){
        //2.创建磁盘工厂对象
        DiskFileItemFactory factory = new DiskFileItemFactory();
        //3.Servlet文件上传核心对象
        ServletFileUpload fileUpload = new ServletFileUpload(factory);
        //4.从request中读取数据
        List<FileItem> fileItems = fileUpload.parseRequest(request);
        //创建一个标记位,标记当前时候有上传文件的操作
        boolean flag = false;
        for(FileItem item :fileItems){
            if(StringUtils.isNotBlank(item.getName())){
                flag = true;
                break;
            }
        }
        // --处理form表单提交过来的普通数据
        //将数据获取到，封装成一个对象
        Question question = BeanUtil.fillBean(fileItems,Question.class);
        //调用业务层接口save
        questionService.update(question , flag);
        // --处理form表单提交过来的文件数据
        for(FileItem item : fileItems){
            //5.当前表单是否是文件表单
            if(!item.isFormField()){
                //6.从临时存储文件的地方将内容写入到指定位置
                item.write(new File(this.getServletContext().getRealPath("upload"),question.getId()));
            }
        }
    }
    //跳转回到页面list
    response.sendRedirect(request.getContextPath()+"/store/question?operation=list");
}

（6）同样需要修改业务层接口，在update方法上添加是否修改图片的参数

/**
     * 修改
     * @param question
     * @param flag 是否有上传文件的操作
     * @return
     */
void update(Question question,boolean flag);

（7）在业务层实现类中修改该方法

@Override
public void update(Question question, boolean flag) {
    SqlSession sqlSession = null;
    try{
        //1.获取SqlSession
        sqlSession = MapperFactory.getSqlSession();
        //2.获取Dao
        QuestionDao questionDao = MapperFactory.getMapper(sqlSession,QuestionDao.class);

        //检测到前端上传文件了，记录文件名，否则不记录
        if(flag) {
            //设置当前存储的图片名称为id值
            question.setPicture(question.getId());
        }

        //3.调用Dao层操作
        questionDao.update(question);
        //4.提交事务
        TransactionUtil.commit(sqlSession);
    }catch (Exception e){
        TransactionUtil.rollback(sqlSession);
        throw new RuntimeException(e);
        //记录日志
    }finally {
        try {
            TransactionUtil.close(sqlSession);
        }catch (Exception e){
            e.printStackTrace();
        }
    }
}
